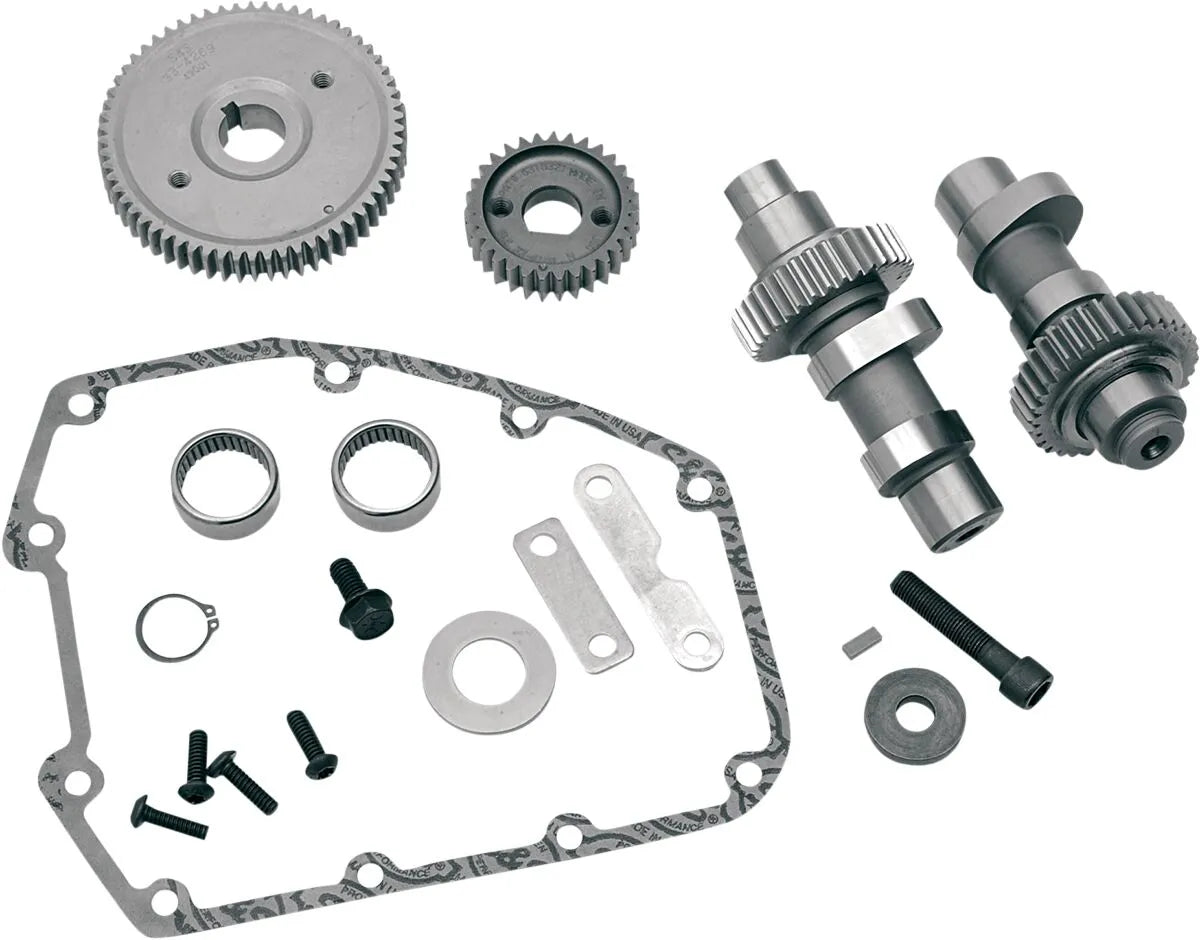

S&s Cycle 570g Camshaft Kit

Upgrade your Harley-Davidson's performance with the S&S Cycle 570G Camshaft Kit. This gear-driven camshaft kit is designed to boost your engine's power and improve valve timing accuracy, delivering enhanced performance and reliability.

Description

The S&S Cycle 570G Camshaft Kit is engineered for 88" to 103" CID engines with compression ratios between 9:1 and 10:1. Experience the strongest performance gains between 3200-3700 RPM. This kit enhances valve timing accuracy by eliminating timing chain lash, a common issue with stock chain drives. The innovative design reverses the rear cam's rotation, creating additional operating clearance between cam lobes for higher cam lifts. Crafted with precision and manufactured in the USA, this camshaft kit ensures optimal performance and durability for your Harley-Davidson. Note that installation requires material removal from the inner surface of the stock gear cover and the use of professional-level tools, including a hydraulic press.

Features & highlights

• Optimized for 88" to 103" CID engines with 9:1 to 10:1 compression ratios.
• Delivers peak performance gains between 3200-3700 RPM for improved acceleration.
• Gear drive eliminates timing chain lash for increased valve timing accuracy.
• Reverses rear cam rotation for increased cam lobe clearance and higher lifts.
• Includes all necessary components for installation, except those listed as required.
• Proudly made in the USA, ensuring top-quality materials and manufacturing.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Grind: 570 Series
• Type: Gear
• Intake Open: 20°
• Intake Close: 40°
• Intake Duration: 240°
• Intake Lift: 0.570"
• Intake Lift at TDC: 0.187"
• Intake Lobe Centerline: 100°
• Exhaust Open: 55°
• Exhaust Close: 20°
• Exhaust Duration: 255°
• Exhaust Lift: 0.570"
• Exhaust Lift at TDC: 0.179"
• Exhaust Lobe Centerline: 107.5°

Important to know

Installation requires material to be removed from the inner surface of the stock gear cover. A hydraulic press and other professional-level tools are required for installation. S&S recommends the use of adjustable pushrods and covers. Cam bearings and gaskets must be replaced during installation. Due to the gear drive design, increased valve train noise may be experienced. The installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance. Adjustable pushrod/cover kit is not included.
