Vertex 450cc Forged High Compression Piston Kit

Maximize the performance of your 4-stroke engine with the Vertex Forged High Compression Piston Kit. This kit delivers increased power and torque across the entire RPM range, making it an ideal upgrade for enthusiasts and professionals alike. Experience the difference in throttle response and overall engine efficiency with this meticulously engineered piston kit.

Description

The Vertex Pro HC forged piston kit is engineered for superior strength and durability. Forged from 2618 aluminum alloy, these pistons withstand the extreme pressures of high-performance engines. The high compression design, with a 13.8:1 compression ratio, optimizes combustion for maximum power output from your 450cc engine. Each piston undergoes a T-5 heat treatment, ensuring exceptional hardness and dimensional stability. The piston skirts feature a high-tech Molybdenum Disulphite coating, which minimizes friction for faster break-in and extended piston life. The included nitride-coated steel rings provide a superior seal, reducing blow-by and further enhancing performance. This kit is designed as a direct replacement, facilitating a straightforward installation process.

Features & highlights

• Forged from high-strength 2618 aluminum alloy for superior durability.
• High compression design (13.8:1) increases power and torque throughout the RPM range.
• Molybdenum Disulphite coated piston skirts reduce friction and improve break-in.
• T-5 heat treatment enhances hardness and dimensional stability.
• Nitride-coated steel rings provide optimal sealing and reduced wear.

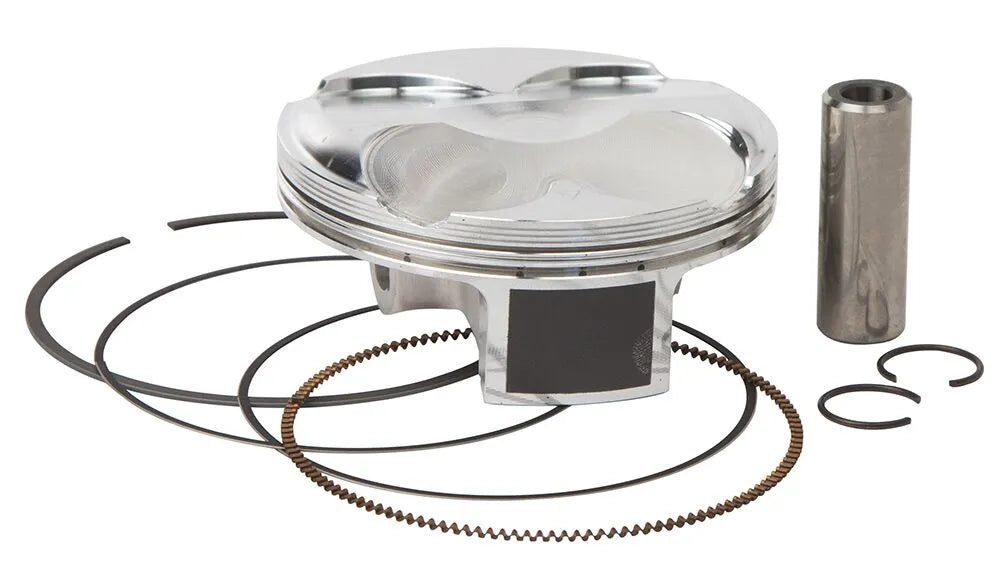

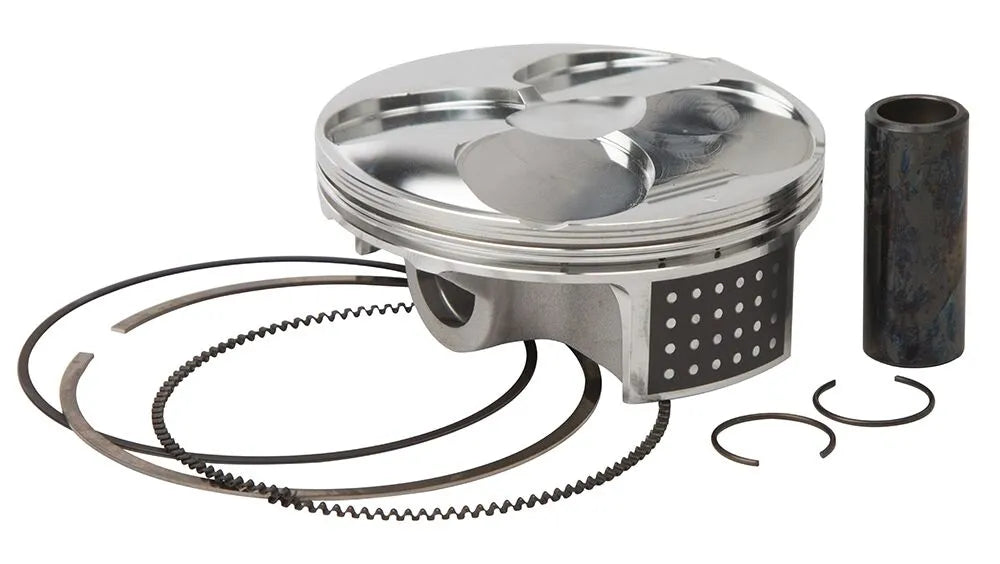

• Complete kit includes piston, rings, wrist pin, and circlips for a comprehensive installation.
• Optimized for 4-stroke 450cc engines.

Technical specifications

• Brand: Vertex
• Part Number: 09104067
• Engine Type: 4-Stroke
• Displacement: 450cc
• Bore Size: 96.00 mm
• Piston Diameter: 95.97 mm
• Compression Ratio: 13.8:1
• Piston Material: Forged Aluminum Alloy
• Ring Material: Nitride Coated Steel
• Skirt Coating: Moly Coated
• Piston Size: Standard Size B

Important to know

This kit includes the piston, rings, wrist pin, and circlips. Four-stroke piston rings are supplied as a set. Verify compatibility with your specific engine model before installation.
